# RestClient 示例

本示例主要介绍 RestClient 调用 API 的使用方法。

该场景通过 RestClient 调用查询快递信息。主要步骤如下：

准备数据

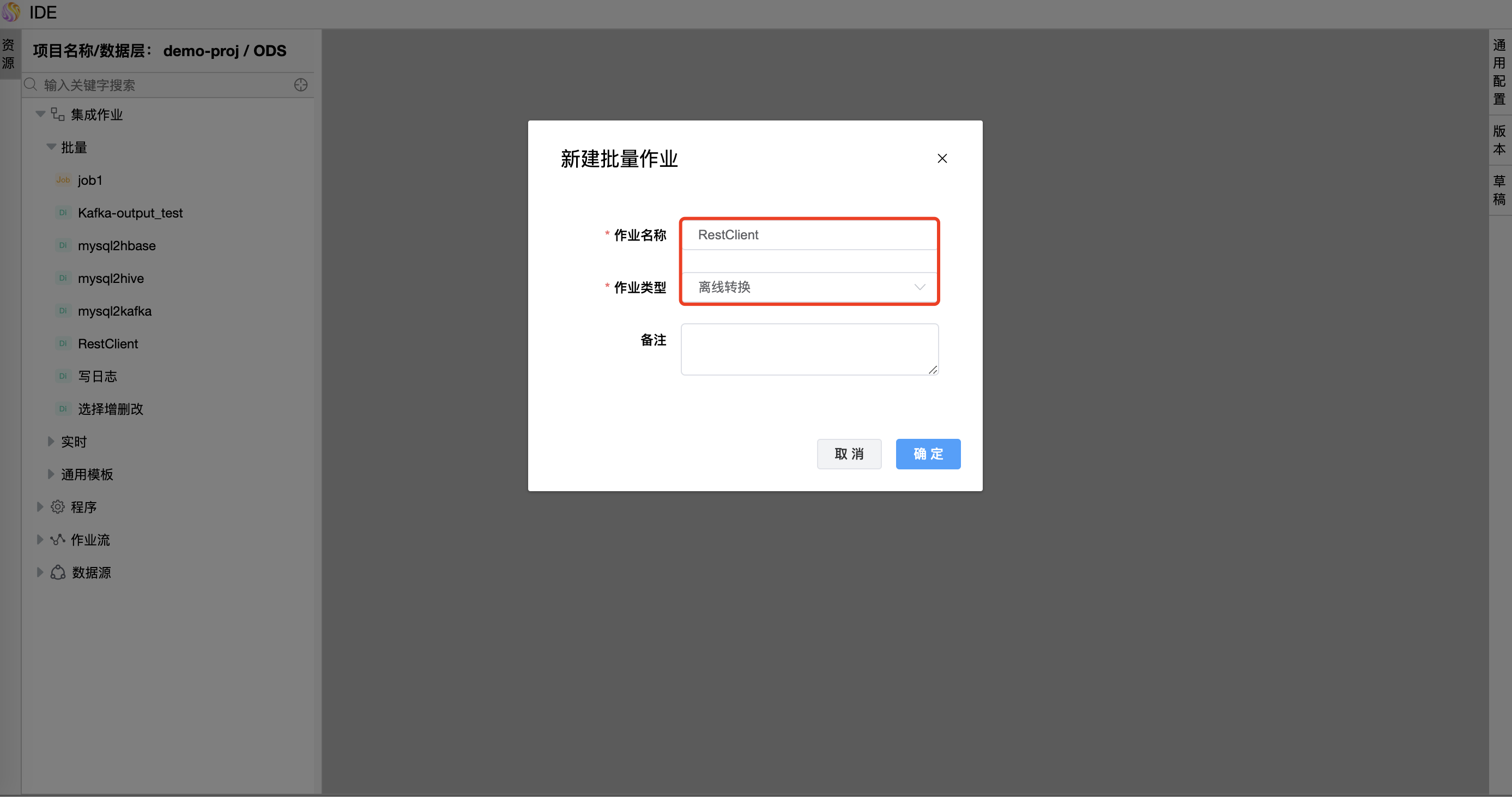

新建批量作业

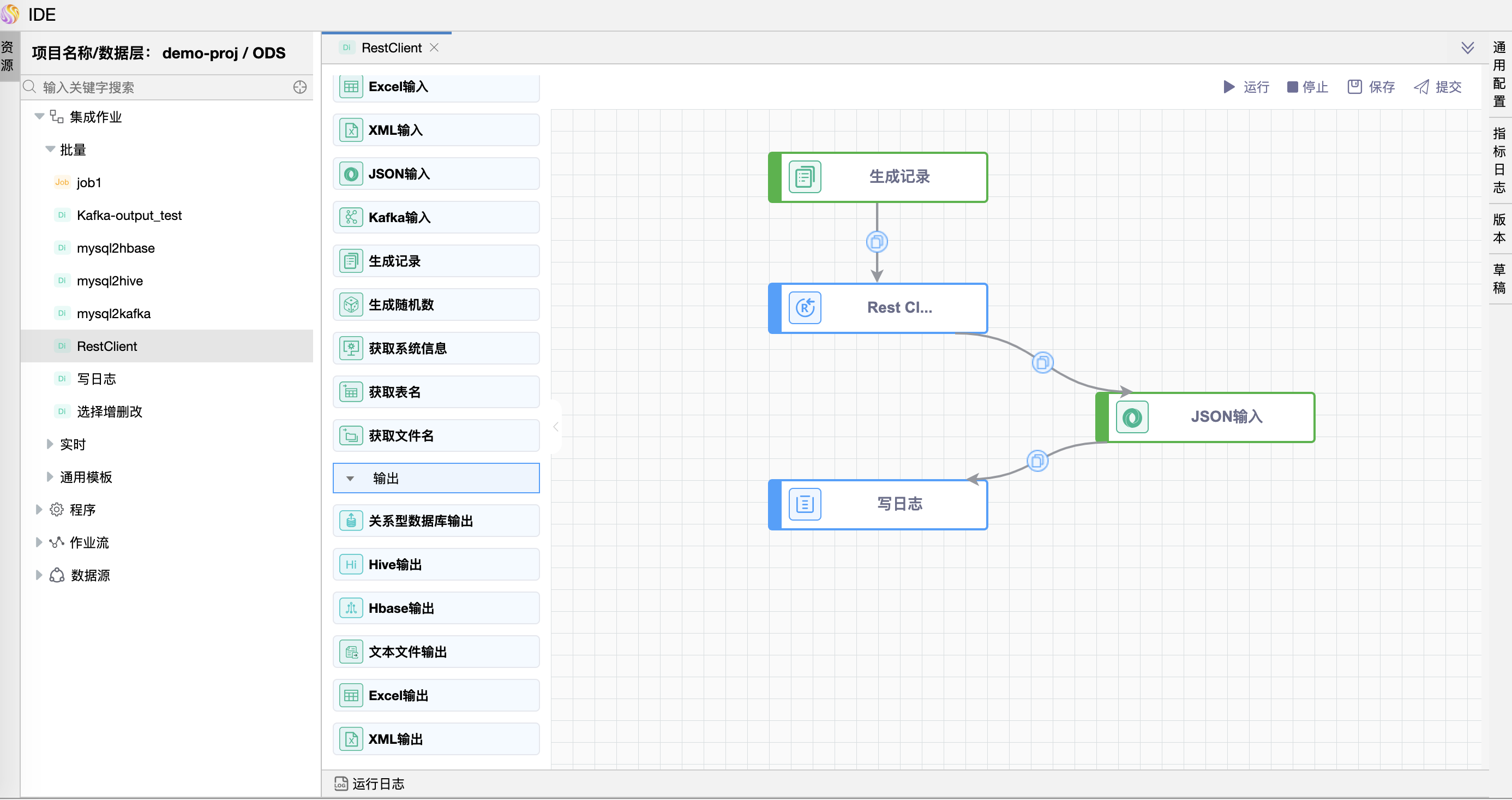

画布中拖入生成记录图元、RestClient图元、JSON输入图元、写日志图元

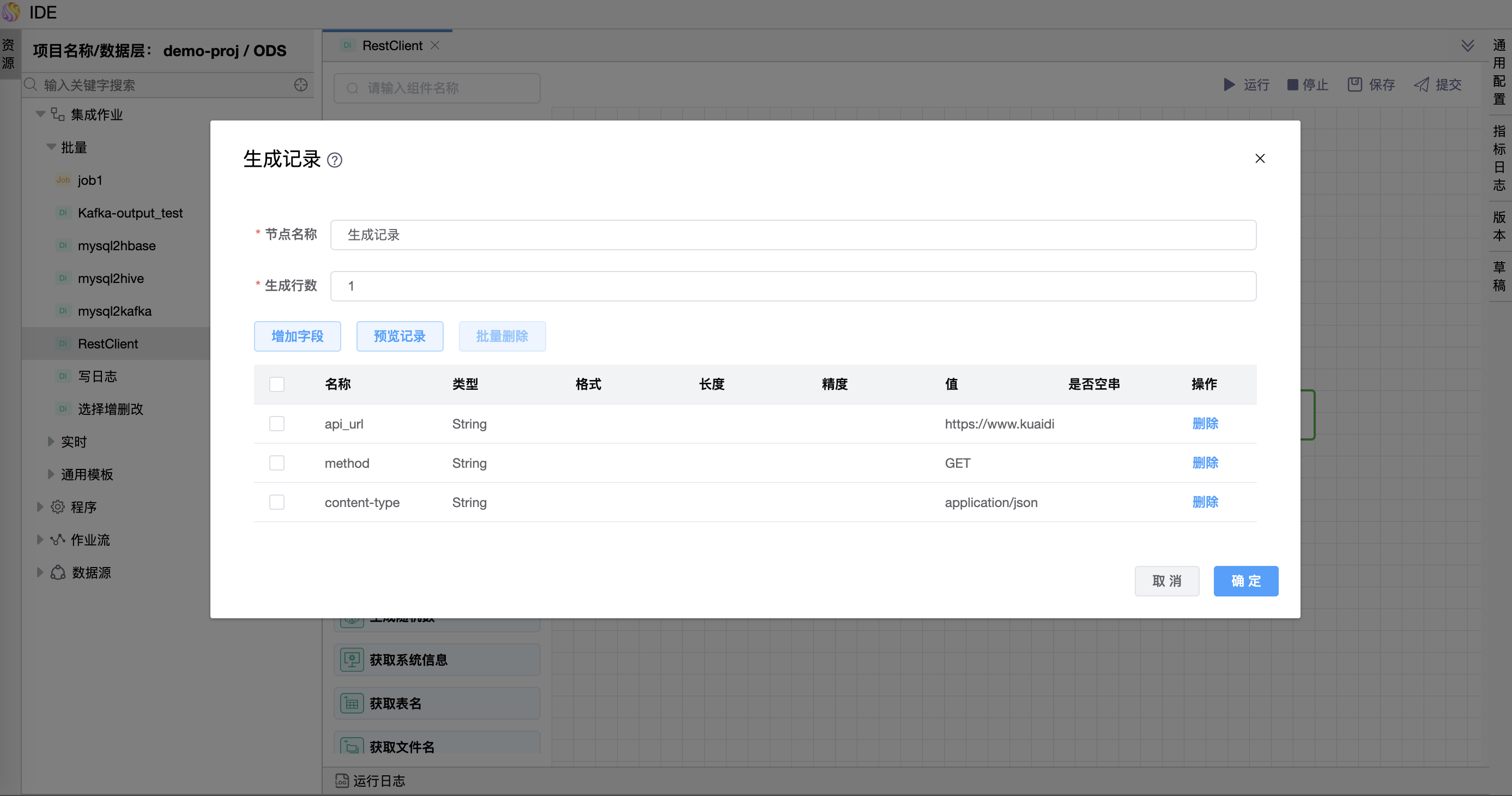

配置"生成记录"组件属性

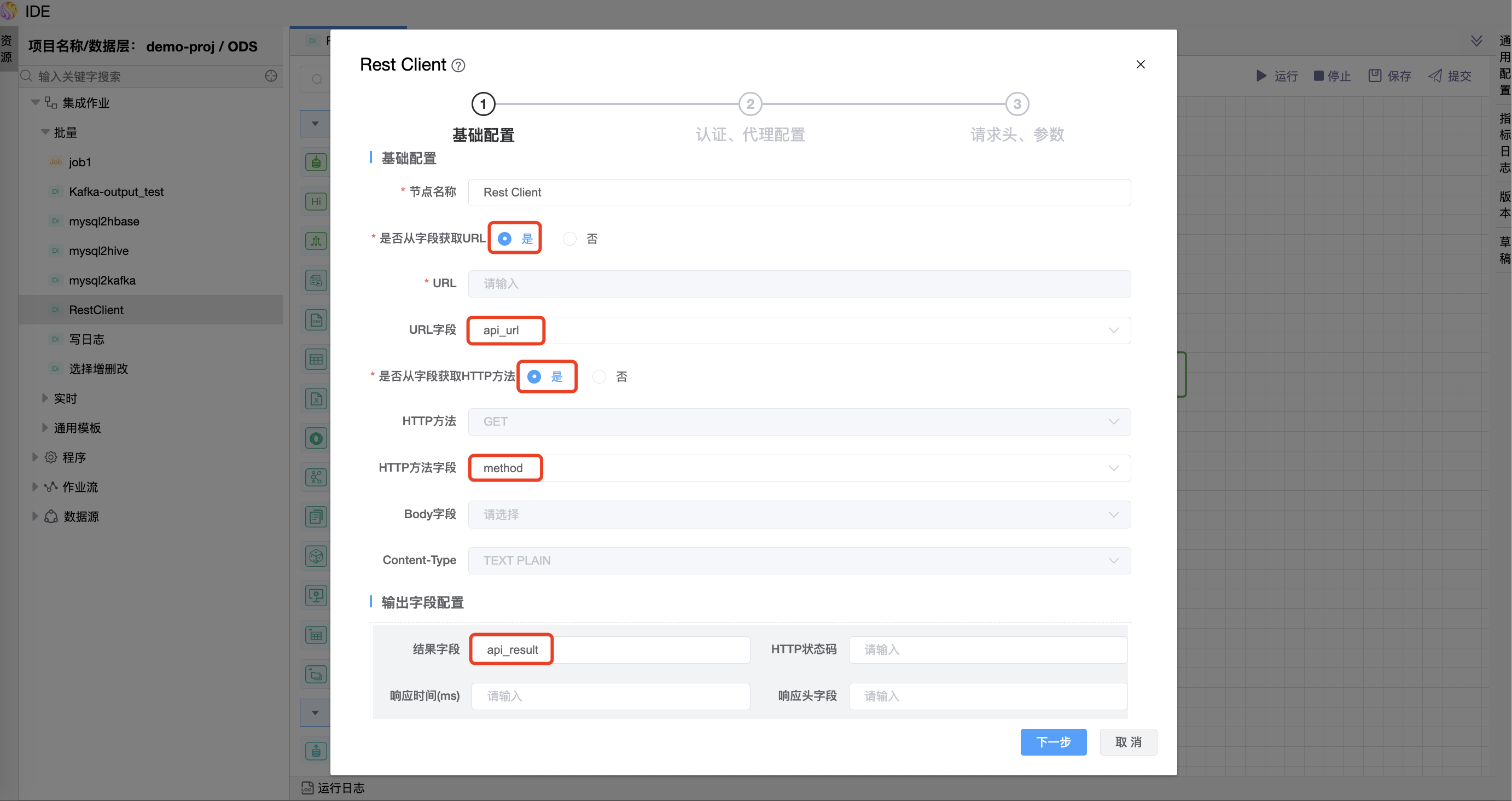

配置"RestClient"组件属性

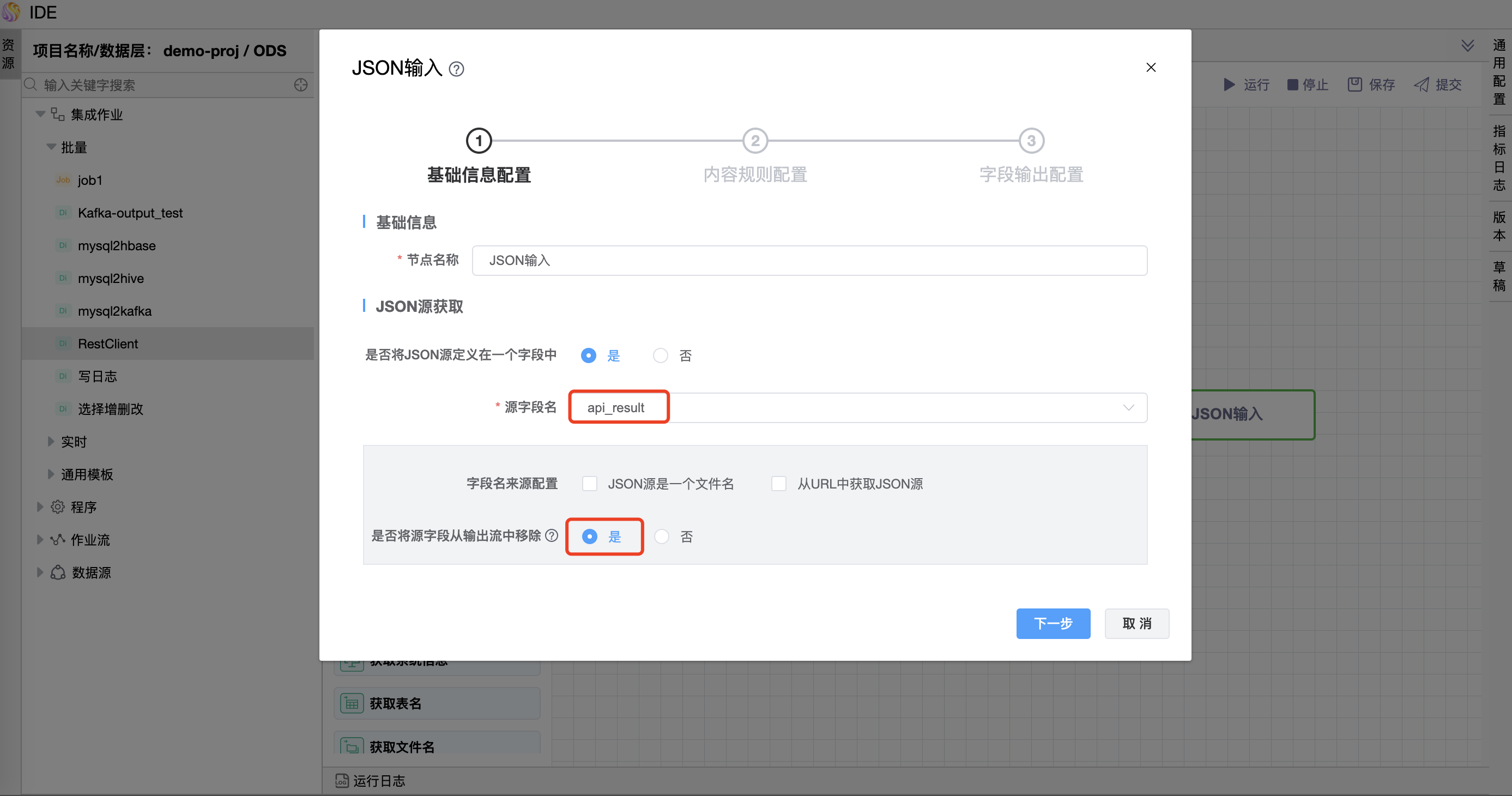

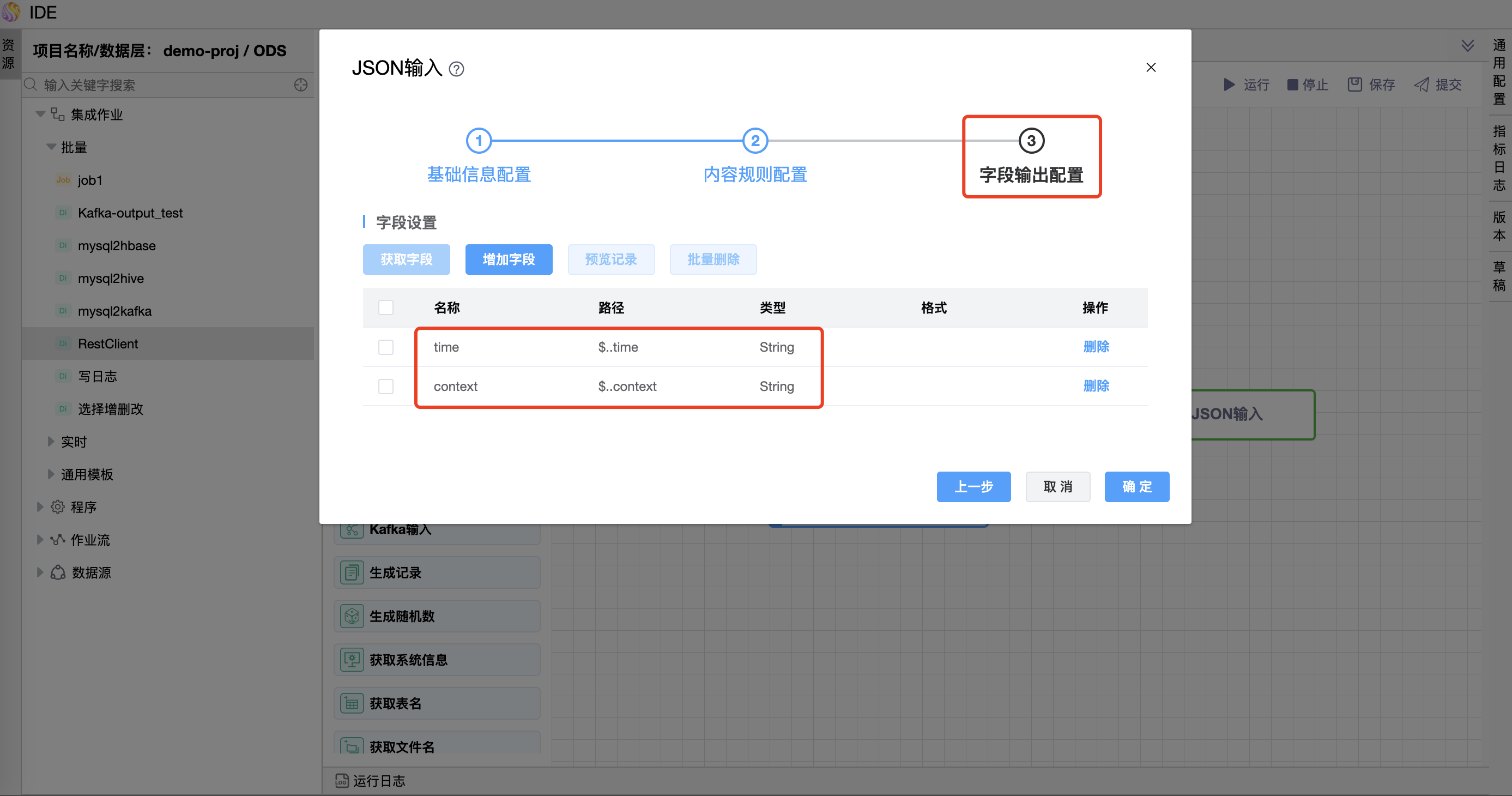

配置"JSON输入"组件属性

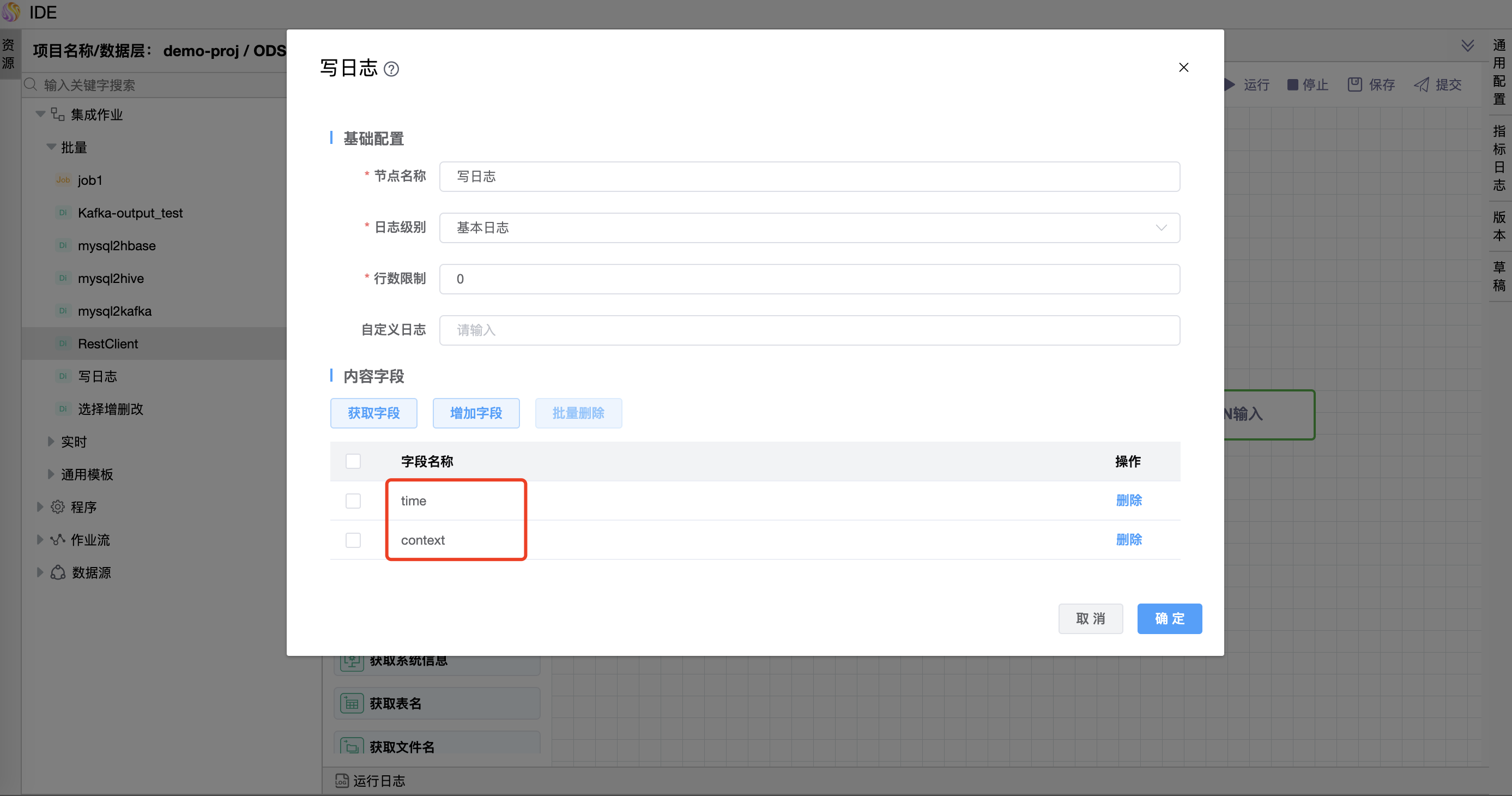

配置"写日志"组件属性
通用配置
保存草稿

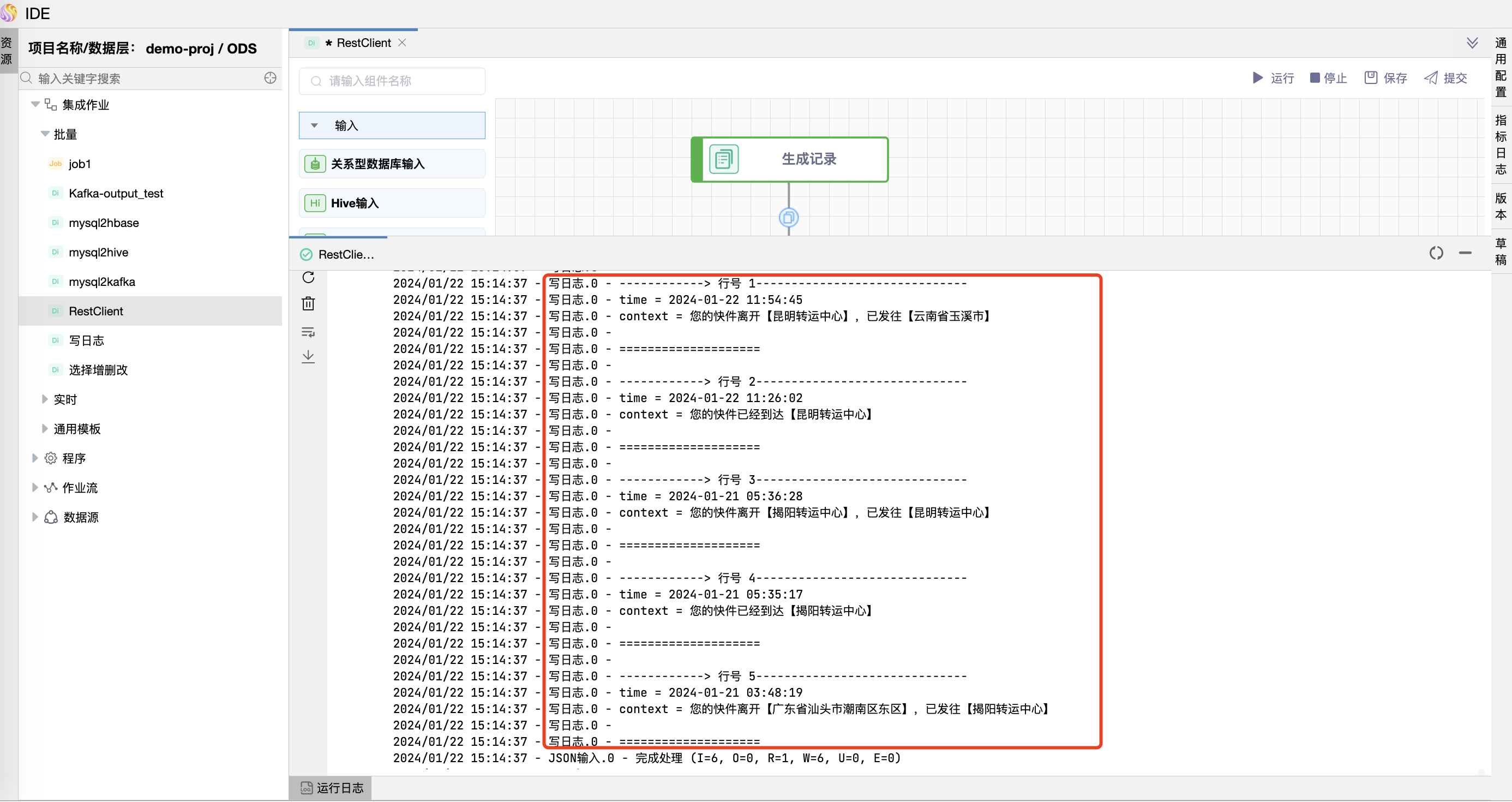

运行
提交版本

# 准备数据

快递接口:http://www.kuaidi100.com/query?type=快递公司代号&postid=快递单号

例如：https://www.kuaidi100.com/query?type=shunfeng&postid=SF1693053866319

调用后的返回值如下：
{
    "message": "ok",
    "nu": "SF1693053866319",
    "ischeck": "0",
    "condition": "C00",
    "com": "shunfeng",
    "status": "200",
    "state": "0",
    "data": [
        {
            "time": "2024-01-22 00:03:36",
            "ftime": "2024-01-22 00:03:36",
            "context": "您的快件离开【乌鲁木齐转运中心】，已发往【新疆伊犁州伊宁市】",
            "location": "昌吉回族自治州,昌吉市"
        },
        {
            "time": "2024-01-21 17:38:12",
            "ftime": "2024-01-21 17:38:12",
            "context": "您的快件已经到达【乌鲁木齐转运中心】",
            "location": "昌吉回族自治州,昌吉市"
        },
        {
            "time": "2024-01-18 21:57:18",
            "ftime": "2024-01-18 21:57:18",
            "context": "您的快件离开【郑州转运中心】，已发往【乌鲁木齐转运中心】",
            "location": "郑州市,中原区"
        },
        {
            "time": "2024-01-18 21:37:57",
            "ftime": "2024-01-18 21:37:57",
            "context": "您的快件已经到达【郑州转运中心】",
            "location": "郑州市,中原区"
        },
        {
            "time": "2024-01-17 20:59:46",
            "ftime": "2024-01-17 20:59:46",
            "context": "您的快件离开【漯河转运中心】",
            "location": "漯河市,源汇区"
        },
        {
            "time": "2024-01-17 20:09:46",
            "ftime": "2024-01-17 20:09:46",
            "context": "您的快件已经到达【漯河转运中心】",
            "location": "漯河市,源汇区"
        },
        {
            "time": "2024-01-16 19:40:01",
            "ftime": "2024-01-16 19:40:01",
            "context": "您的快件被【河南省许昌市】揽收，揽收人: 王培霞（15893793903）",
            "location": "许昌市,魏都区"
        }
    ]
}

ps:快递公司编码:申通=”shentong” EMS=”ems” 顺丰=”shunfeng” 圆通=”yuantong” 中通=”zhongtong” 韵达=”yunda” 天天=”tiantian” 汇通=”huitongkuaidi” 全峰=”quanfengkuaidi” 德邦=”debangwuliu” 宅急送=”zhaijisong”
